What is Ammonia Refrigeration?

Ammonia Refrigeration first came about in the 1850 - 1860 time frame both in France for refrigeration and in Germany so that the Germans could enjoy cold beer, at any time of the year!

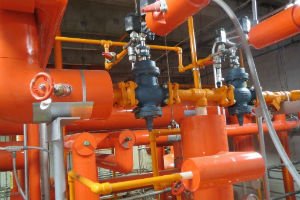

The mechanical process of ammonia refrigeration changes a liquid into a gas which causes it to absorb heat in the process. The heat is then transferred - usually to an outside heat exchanger or cooling tower.

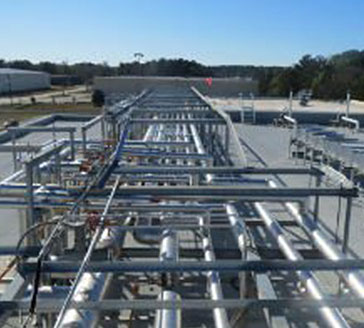

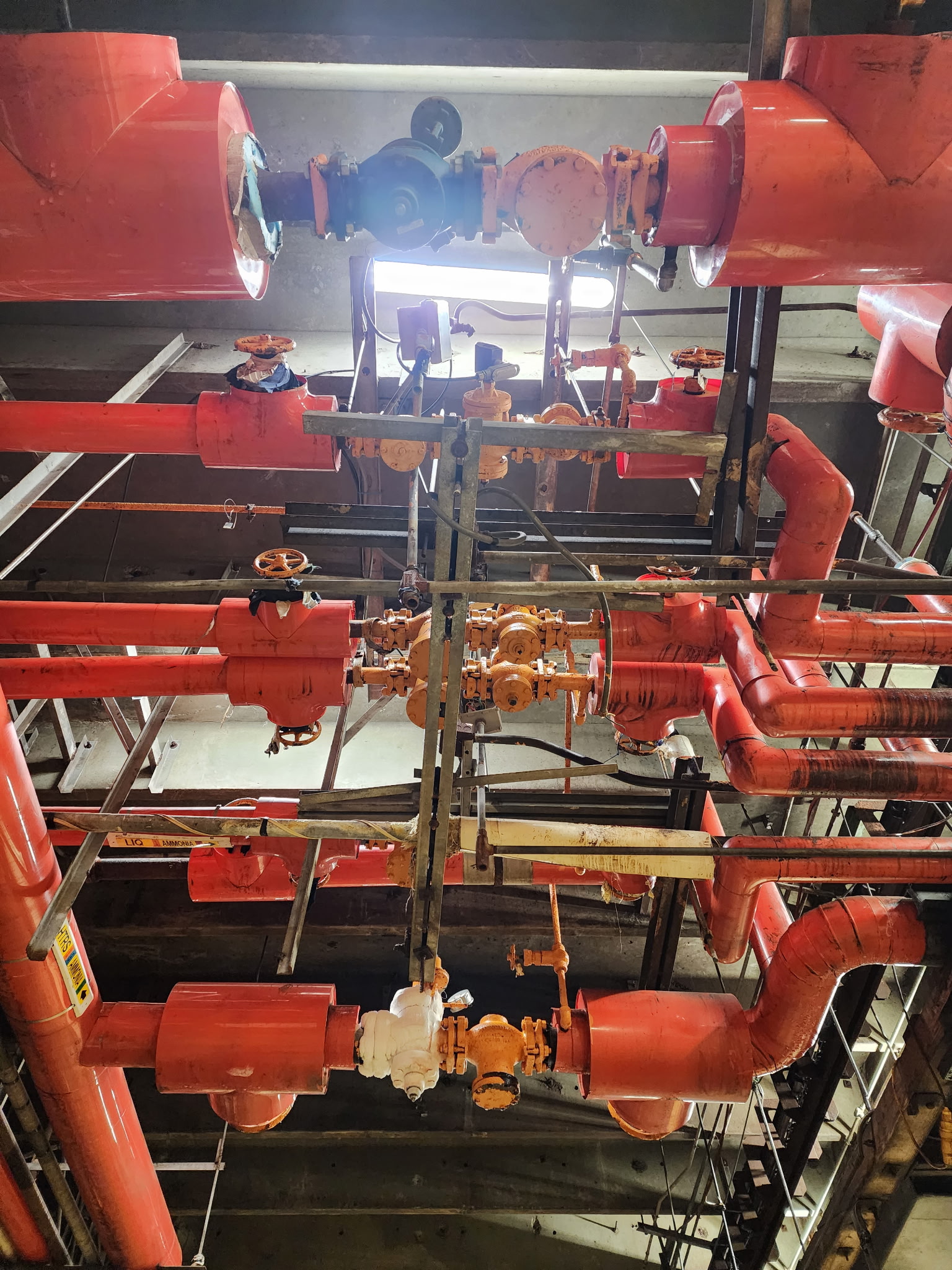

Ammonia Refrigeration is very common and used extensively - particularly in industrial applications such as food processing, (meat packing/processing, produce, seafood and poultry) refineries and petrochemical plants as well as in the pharmaceutical industry and breweries, for chilling beer!

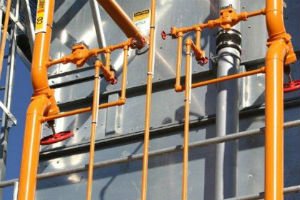

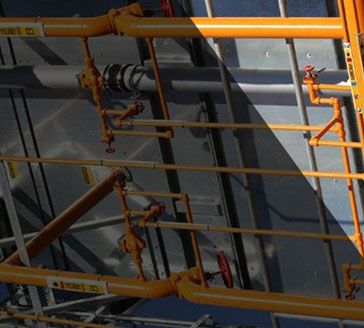

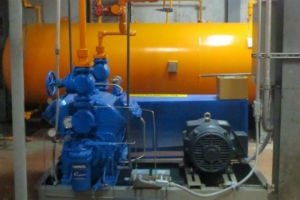

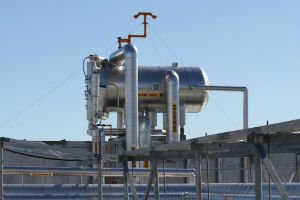

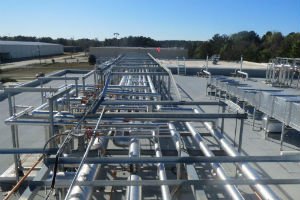

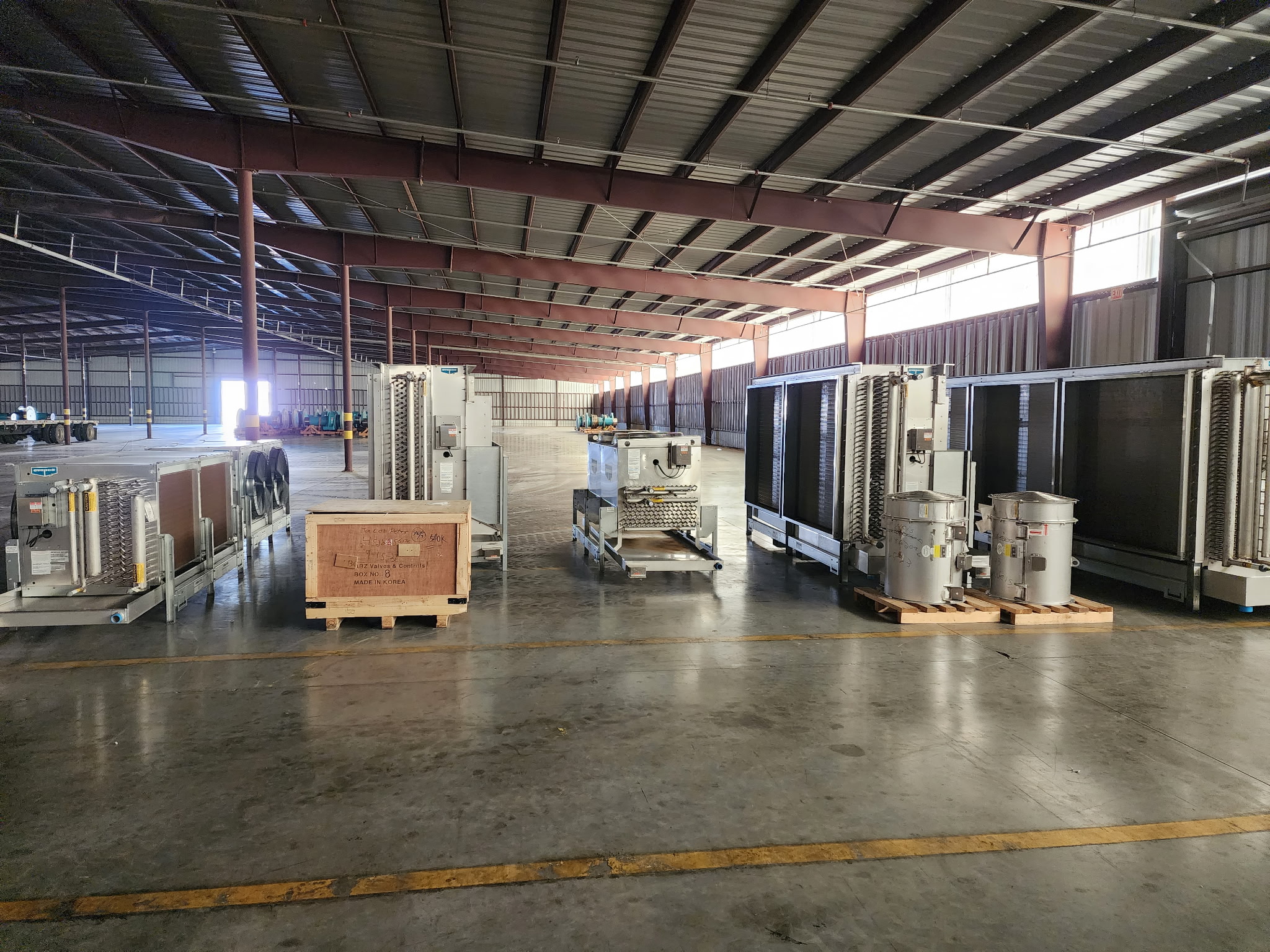

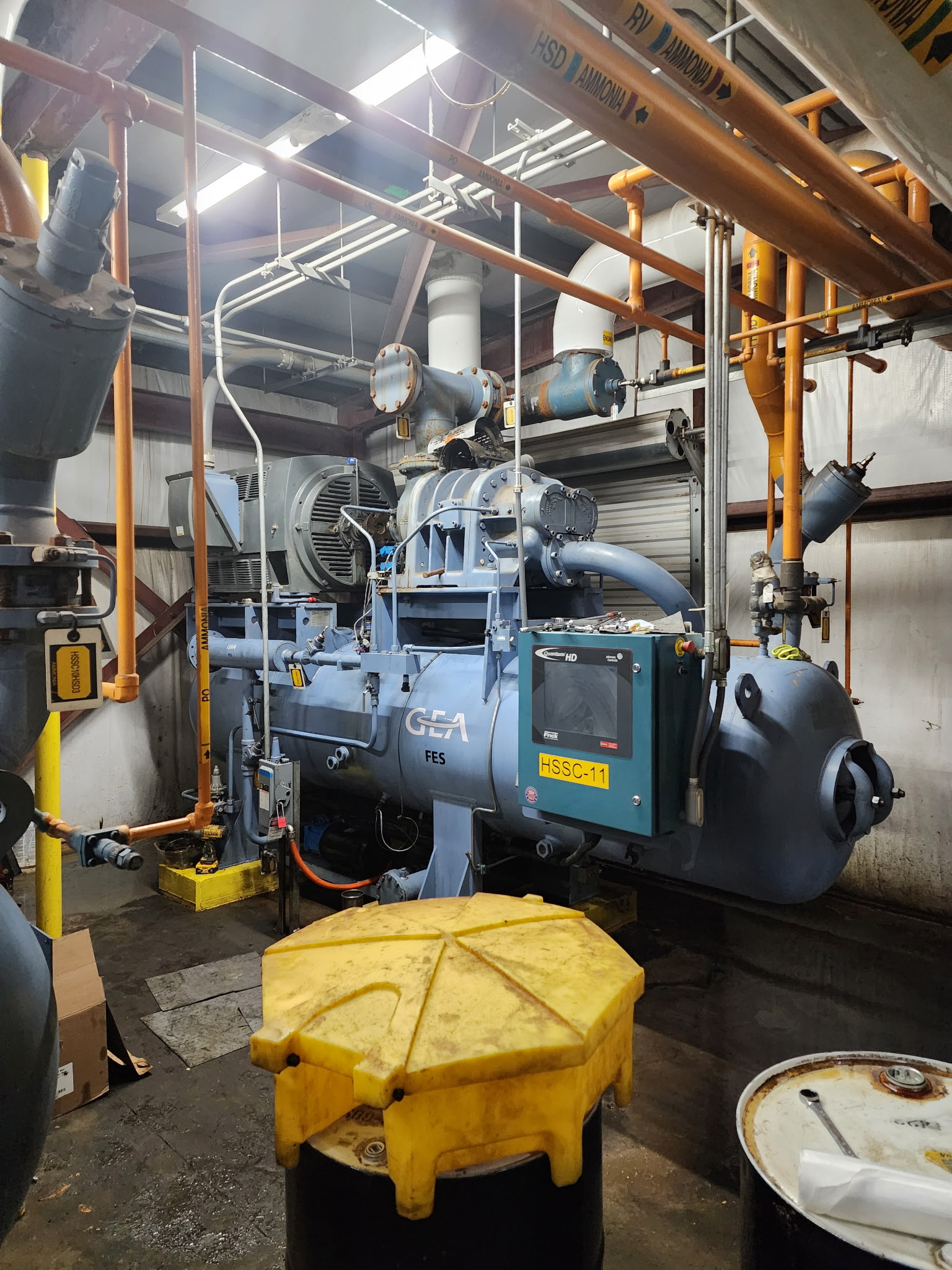

One of the more common refrigeration compressors in many refrigeration systems is the twin rotary screw.  However, reciprocating compressors have a significant advantage in "part-load" operating efficiencies over screw compressors.  Chillers for air conditioning purposes seldom operate at full load. The part load performance has a very significant impact on a customer's power consumption.  Since refrigeration compressors rarely operate under full-load conditions, the reasons for choosing a reciprocating ammonia chiller add up to considerable economic savings over time - the higher the price for electricity, the greater the savings in choosing an ammonia chiller that uses a reciprocating compressor. The screw compressor efficiency increases with the size of the refrigeration system, but reciprocating compressors are much more efficient below 500 kW.  While HFC-based chillers may use small screw compressors, giving them good part load performance at 50%, they provide poor overall performance and poor performance at full load, when compared to an ammonia-based reciprocating compressor.

Ammonia is once again becoming a very popular refrigerant for a number of reasons:

• Ammonia Refrigeration is not harmful like most every other refrigerant such as CFCs.

• Ammonia does not deplete or harm the planet's ozone layer.

• Ammonia, as a refrigerant is also readily available and inexpensive - especially when compared with other refrigerants.

• Under part-load conditions, the ammonia-based reciprocating compressor maintains its efficiency and the screw compressor becomes less efficient resulting in higher operating costs.

What are Ammonia Chillers?

An ammonia chiller, while more expensive - by almost twice that of R-134a freon-based chillers, may be the best choice for commercial customers when making an investment over the long haul.  Ammonia chillers ammonia-based refrigerant, is superior to freons, including R-134a, as ammonia does not deplete the ozone or contribute to global warming as R-134a does.

______________________________________________________

The following article about Ammonia Chillers and Ammonia Refrigeration by:
William Dietrich - York International

With the guidelines established by the Montreal Protocol, methods for dealing with the production, containment and phase-out of ozone depleting substances are clearly in place. This includes the implementation of chlorine-free alternatives for CFCs and HCFCs in air conditioning applications.

The chlorine free alternatives, notably HFC refrigerants, are excellent replacements for CFC, and in the future, HCFC compounds as well. The regulatory focus has now shifted to dealing with Global Climate Change, and there are concerns about the global warming potentials of the HFC compounds and their potential negative impact on global warming.

These concerns have resulted in increased interest and use of ammonia in standard chiller applications, especially in Europe where there is movement to accelerate the phase-out of HCFC refrigerants.

This paper will review the design and cost considerations of water cooled ammonia chillers when compared to water-cooled chillers using HCFC or HFC refrigerants and discuss the typical chiller packages that are available.

INTRODUCTION

It has been a number of years since CFC refrigerants were used as the basis of design for a packaged water chiller, so talk about “alternative” refrigerants in these applications is something of a misnomer. HCFC-22 has been the refrigerant of choice for many years in Direct Expansion (DX) systems using reciprocating, and more recently, scroll and screw compressors. R-123, R-22 and R-134a have been the basis of design for “Large Tonnage” (typically systems with capacities above 350 kW) chillers since 1990. Large Tonnage chillers are generally single compressor, flooded evaporator designs using centrifugal or screw compressors.

With the phase-out of HCFC refrigerants, designs of new chillers will be based on non-chlorine containing compounds, typically HFCs. The “short list” of HFCs being used consists of R-134a, R-410A and R-407C. The 400 series refrigerants are blends of HFC compounds, each with different characteristics suitable for different applications. In addition to these, ammonia is another alternative. Ammonia has a long history as an excellent refrigerant in a number of applications, and is seeing increased use in packaged HVAC chillers

WHY AMMONIA?

Traditional criteria for selection of a refrigerant have involved a number of considerations, including efficiency, cost (both refrigerant cost and system cost), operating pressures, toxicity, flammability, material compatibility and availability. With increased concern about Global Climate Change, refrigerant impact on Global Warming must also be considered. This is viewed in two ways, the direct and indirect effect. The term Global Warming Potential (GWP), refers to the direct effect, meaning the impact when that substance is released to the atmosphere. The indirect effect is more application related, and refers to the impact on Global Warming from generating electricity for the given application. For chiller applications using the latest technology for leak-tight designs, the indirect effect is the largest contributor to Global Climate Change. This implies that the efficiency of the refrigerant selected is a critical factor for an environmentally friendly design.

In today’s market, an ammonia packaged water-cooled chiller will be compared against products using R-22, R-134a, R-407C, R-404A, R-410A or R-123. Table 1 summarizes the properties of these refrigerants.

Table 1: Refrigerant Properties

Refrigerant	COP (1)	ODP (1)	GWP (2)	Refrigerant Type	ASHRAE 34 Class
R-134a	1.000	0	1300	HFC	A1
R-123	1.055	0.02	85	HCFC	B1
R-22	1.001	0.05	1700	HCFC	A1
R-404A	0.916	0	3750	HFC Blend	A1/A1
R-407C	0.963	0	1600	HFC Blend	A1/A1
R-410A	0.947	0	1890	HFC Blend	A1/A1
Ammonia (R-717)	1.033	0	0	—	B2

Notes:
1. COP relative to R-134a, based on 6.7°C evaporator and 35°C condenser, no subcooling or superheat
2. Carbon Dioxide = 1,100 yr. ITH

From an environmental standpoint, ammonia is quite attractive, with a GWP and ODP of zero, and a relatively high COP.

APPLICATION CONSIDERATIONS

Heat Exchangers

As pointed out by Starner (1993), ammonia chillers have been hampered by heat exchanger design limitations. HCFC and HFC chillers use advanced heat transfer surfaces, usually of copper alloy, to achieve good heat exchanger performance in a relatively compact design. A Small Temperature Difference (difference between leaving water temperature and refrigerant saturation temperature) of 1.1 K is common.

Copper heat exchangers cannot be used with ammonia, limiting material choices for most chiller applications to steel or stainless steel. Steel and stainless steel heat exchanger tubes cannot be enhanced as easily as the copper alloys, so the performance of the heat exchanger suffers. In addition, higher fouling factors must generally be used for steel applications. The end result is larger shell and tube heat exchangers for comparable performance, and limits on the Small Temperature Difference that can be achieved. Generally, differences below 1.7 K are impractical for both condensers (Starner 1993) and DX evaporators (de Larminat 1997).

Plate heat exchangers are commonly used with ammonia. They offer a lower Small Temperature Difference and lower refrigerant charge than a shell and tube configuration. Therefore, the use of plate heat exchangers is desirable when the highest possible COP is required or when system charge quantity is critical.

If a larger refrigerant charge and greater small temperature differences are acceptable, a shell and tube packaged chiller is generally lower first cost than one utilizing plate heat exchangers. A shell and tube condenser also offers waterside cleaning advantages over a plate heat exchanger.

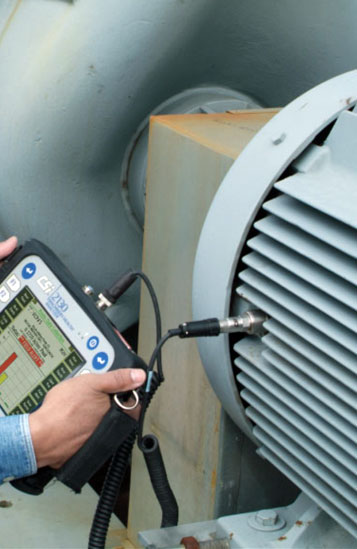

Compressors

Screw and reciprocating compressors are most commonly used for ammonia chiller applications. It may be possible to use multistage centrifugal compressors, but their use is usually limited to industrial applications (Pillis 1993).

Open drive compressors are the most common, as this eliminates the concern of ammonia and copper compatibility that would be present with a semi-hermetic motor. Semi-hermetic motors are being tested, as the motor technology is now being developed for ammonia, using either aluminum windings, or encapsulated copper windings (de Larminat 1997).

Open drive compressors can accept standard or flanged motor mounting arrangements, taking advantage of cost competitive standard open motor designs rather than expensive, special semi-hermetic ammonia designs. Flange mounting eliminates the need for field alignment of the motor.

One area of concern with open drive applications is the need for a shaft seal and the potential for leakage. This concern has been alleviated with new shaft seal designs, which are available with leakage rates of less than 0.01%. This is often less than the leakage associated with the fittings and motor terminals of a semi-hermetic design.

Health and Safety

Ammonia carries a B2 rating under ASHRAE Standard 34 rating classification, as opposed to an Al rating for most of the HFC refrigerants. A B2 rating indicates higher toxicity and flammability as defined by the ASHRAE Standard. Because of this classification, ammonia may be subject to different code requirements than a refrigerant carrying an Al classification. This may make it difficult to offer an ammonia chiller as an alternative, especially in a replacement situation.

These code restrictions will vary from country to country, and can be different within different areas of a given country. In Northern Europe, for instance (Germany, Benelux, Scandinavia...), restrictions for the use of ammonia are minimal, where the phase-out of HCFCs is underway, and there is more pressure for the future elimination of HFCs (de Larminat 1997). In the United States, restrictions will typically vary by state, depending on the fire and building codes that are used.

COMMERCIAL AVAILABILITY

A key for the success of ammonia chillers as alternative to HVAC chillers using HCFC and HFC refrigerants is the availability of standard, packaged designs. In the past, requests for ammonia chillers have been treated similarly to an industrial refrigeration application, with a “one-off” design for each project. The cost and leadtime with this approach is not competitive when quoting against a standard design HVAC chiller.

This is one reason why there has been more success with ammonia chillers in Europe. Many manufacturers offer standard, off-the-shelf designs for HVAC applications with competitive cost and leadtime. While the cost of an ammonia chiller will be competitive, it will generally be higher than an HCFC or HFC chiller package. This is due mainly to the higher cost of the heat exchangers required for ammonia applications versus the copper tube heat exchangers that can be used for HFCs and HCFCs. Table 2 lists some of the typical features of an ammonia chiller package.

Table 2: Packaged Ammonia Chillers

Drive	Open	Open	Open	Open
Compressor Type	Screw	Screw	Reciprocating	Reciprocating
Evaporator
Style	Plate	DX shell and tube	Plate	DX shell and tube
Material	Stainless steel	Carbon steel	Stainless steel	Carbon steel
Condenser
Style	Plate	Shell and tube	Plate	Shell and tube
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Capacity Range (kW)	400-2000	400-2000	100-800	100-800
Relative Cost	Higher	Lower	Higher	Lower


CONCLUSION

Ammonia will begin to play a bigger role as a chiller refrigerant, especially with concern regarding the role of HFC refrigerants with respect to Global Climate Change. Even though chiller applications result in very low emissions, meaning the GWP of the refrigerant is not a significant factor in Climate Change, HFCs many get caught in the regulatory umbrella. If this happens, gases with zero GWP, such as ammonia, will be more popular choices as a long-term alternative.
